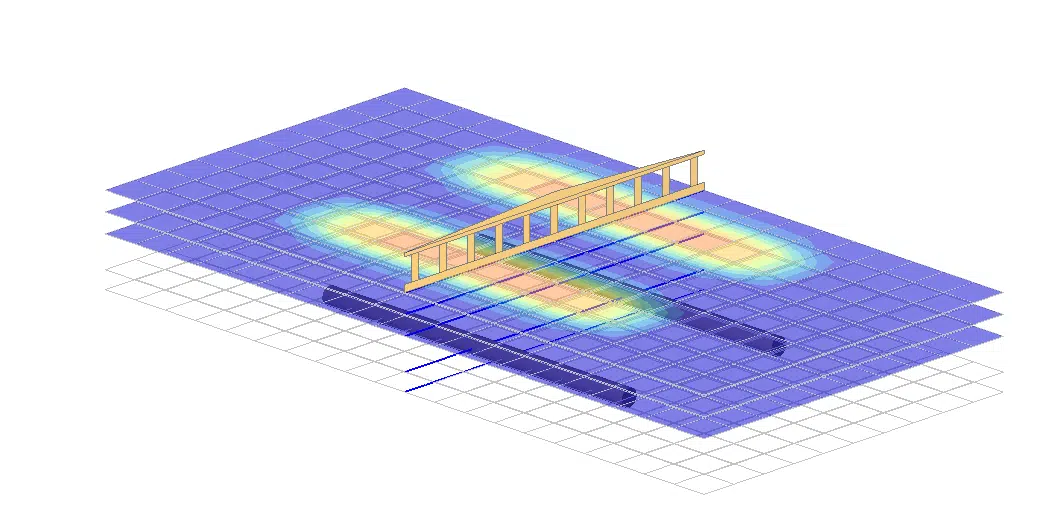

Movement in the ground can have a dramatic effect on existing structures. How do you predict ground settlement due to tunnelling, excavations or mining in three dimensions from inputting values to checking results? How do you assess the damage to structures and utilities? Oasys XDisp enables engineers to define and analyse even the most complex three dimensional problems quickly. Easy to set up and use, XDisp is relied upon by leading engineering firms around the world on some of the biggest tunnelling and excavation projects.
Session 1:
- A brief overview of XDisp and its use in industry
- Set up a tunnelling and exaction analysis
- Predict settlements
Additionally, we demonstrated the simplicity of setting up a file using the graphical input feature and introduce the audience to useful shortcuts and tips to enable proficient modelling. We also outline simple checks that the user can utilise for outputs.
Session 2:
- A brief overview of Building, Utility and Rail Damage theory
- Run the Damage Analysis using Oasys XDisp
- Review results
Additionally, we demonstrate the simplicity of running the analysis and presenting Building and Utility Damage to clients. We also outline simple checks that the user can utilise for outputs.
