PDisp - Assessment of Loading Induced Ground Displacement

Oasys PDisp is a tool that provides an easy-to-use, yet powerful and robust methods to analyse ground movements due to pressure and heave loading. PDisp is a core component of our Ground Movement Bundle and Geotechnical Suite, both in Pro and Basic versions.

Oasys PDisp

Oasys PDisp allows users to assess ground movements resulting from pressure in their projects, and therefore control, limit and/or mitigate any excessive ground displacements which could detrimentally affect existing or future assets.

Why should I buy it?

Civil and geotechnical engineers responsible for routine ground movement assessments such as in earthworks’ design use Oasys PDisp as it provides a validated, robust and user-friendly method of calculations, ensuring acceptable and appropriate QA and QC standards are met. Combined with Oasys XDisp, geotechnical engineers can undertake comprehensive building and utilities damage assessments.

Analyse ground movements due to pressure:

  1. Oasys PDisp calculates displacements (and stresses if required) within a linear elastic or non-linear soil mass, arising from uniform normal or tangential pressure, applied to rectangular, polygonal and circular loaded planes.
  2. PDisp calculates time-rate 1D consolidation for linear problems using the finite difference approach.
  3. PDisp is ideal for predicting the displacements that may arise due to the action of several loads in a soil mass.
  4. PDisp can be used with Oasys XDisp to run building and utility damage assessments.

You must be logged in to access this product's trial download, please login or register.

Login / Register

Capabilities of PDisp

A new feature that was released with PDisp 19.4 was the consolidation settlement analysis (instantaneous, primary and secondary). This feature is particularly useful for engineers investigating the behaviour of clay and organic soils and when working with raft foundations.

Application Specialist, Zeena Farook, hosted a webinar presenting this new feature and the theory behind it. Watch the webinar here.

What does PDisp do with its consolidation settlement?

PDisp 19.4 calculates instantaneous settlement in the drained and undrained soils, it will then calculate its primarily consolidation in the undrained soils. There are two options for the user;

  • mv Method (linear)
  • Cc Method (non-linear) – considers normally consolidated soils and overconsolidated soils

PDisp can also then calculate the secondary consolidation in the undrained soil.

PDisp uses the COM (Component Object Model) interface in a number of innovative ways some examples include carrying out sensitivity analyses and automating outputs to produce comparison graphs. COM interface allows users to create data objects that allow external programs to pass information and instructions to and from our Geotechnical programs. COM has already been used in research and it will speed up the analyses in your geotechnical projects.

COM is already an established utility in other Oasys programs including Frew and Alp, engineers have used it to quickly access specific outputs across multiple programs, such as running sensitivity analysis and iterate between analysis results and other programs.

To help you start using COM, we’ve added a new section in the User Manual that takes you through the programming interface within PDisp. Packaged within the 19.4 release are COM examples using VBA and C++ code.

If you are considering using COM with your programs our customer support team and internal developers can assist you with linking application together. Contact us to find out more.

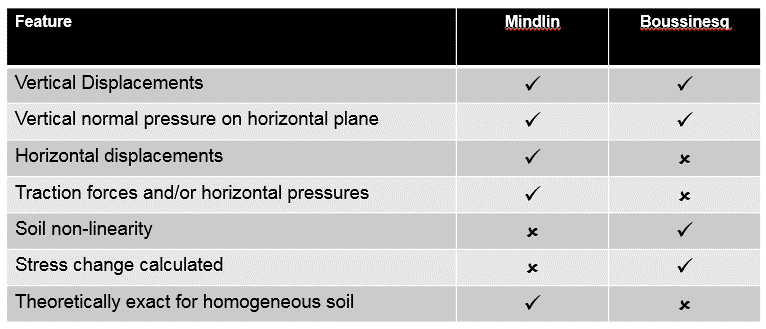

Boussinesq and Mindlin Options available for elastic analysis of the soil mass.

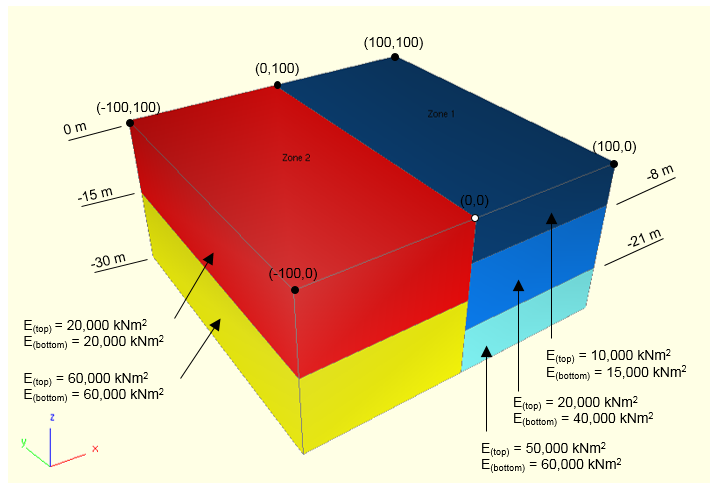

A number of horizontal soil layers may be specified, although the base of the bottom layer is assumed to be rigid.

A linear variation of modulus with level may be specified for each soil layer.

Displacements and stresses may be calculated for any soil layer.

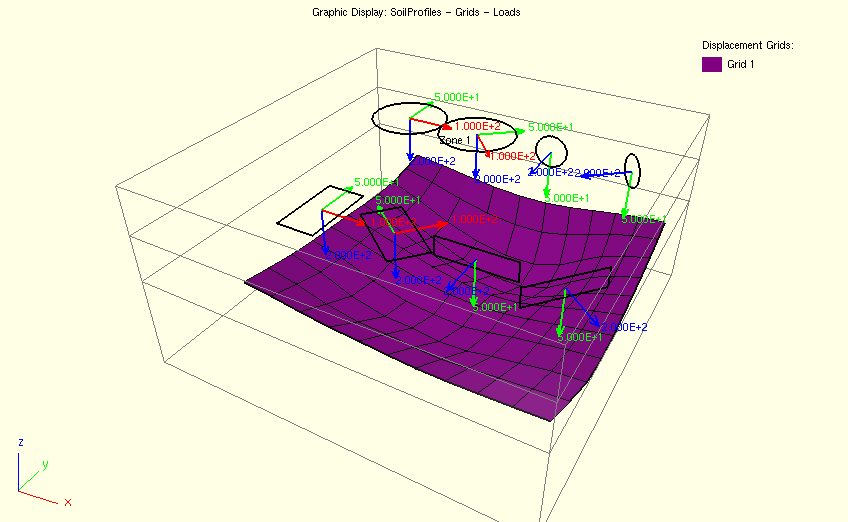

Irregular shaped loads can be modelled

Loaded areas can be superimposed and can be specified to act at different levels.

Loads can be normal or tangential, and can act on both horizontal and vertical planes.

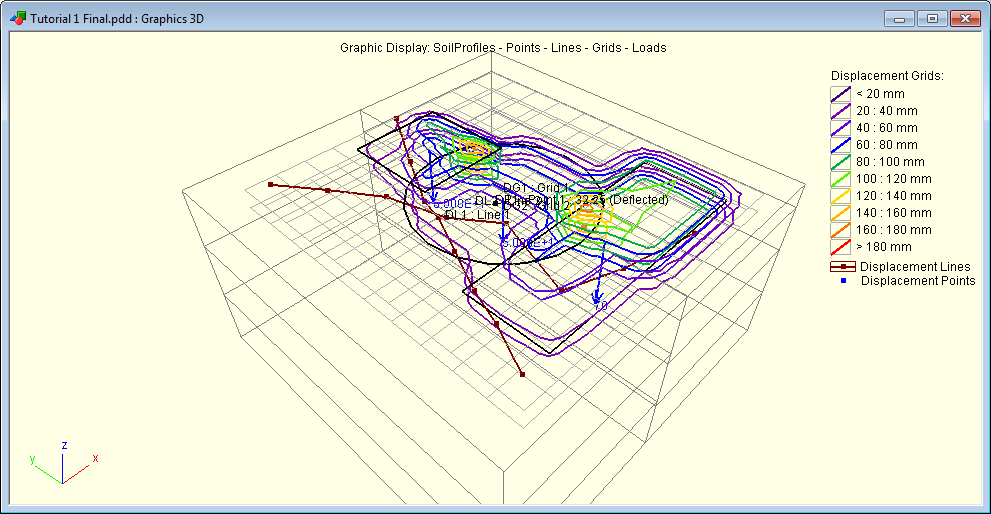

The 3D Output Window enables the user to show settlements clearly for presentation in reports.

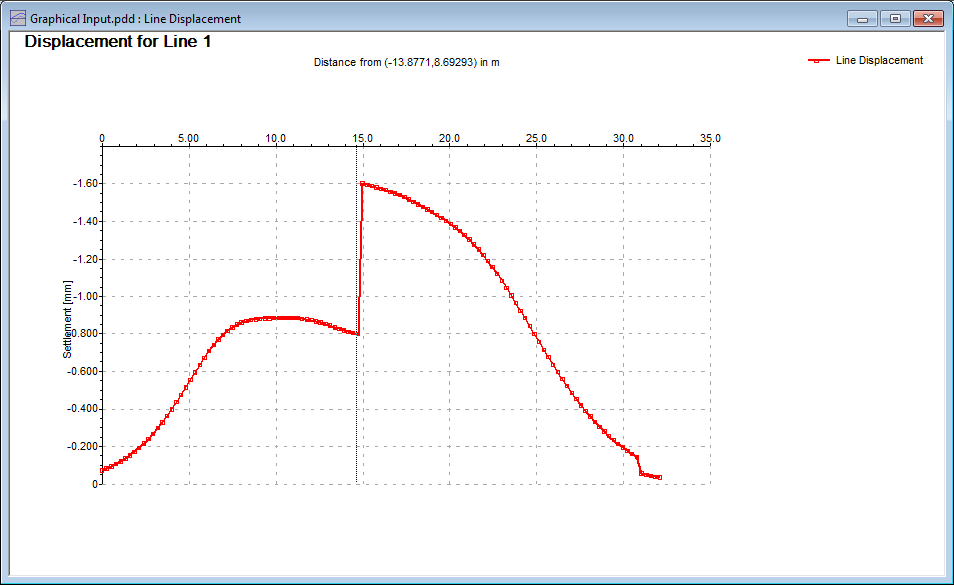

Settlements can be plotted along Displacement Lines.

Oasys PDisp can be combined with Oasys Xdisp to carry out Building and Utility Damage Assessments.

Find out more about Xdisp

Explore PDisp Applications

Oasys PDisp is available as part of new Oasys Bundles

Ground Movement Bundle

The Oasys Ground Movement Bundles bring together tried and tested Oasys Geotechnical tools for slope stability assessment and the calculation of soil displacements due to imposed loading or excavation into a single bundle.

Find out more »

Geotechnical Suite

The Oasys Geotechnical Bundles group together several Oasys Geotechnical software tools into a single subscription at a price significantly lower than the cost of the individual tools if purchased as separate subscriptions.

Find out more »

Serpentine Gallery Pavilion, London

The Serpentine Gallery Pavilion was designed by Frank Gehry and Arup. It was erected in Hyde Park and was open to the public for one summer.

View Case Study »

Request a Trial Submission Form

  • This field is for validation purposes and should be left unchanged.

Further Information

The trials are limited for 14 days only, and there is no functional limitation. During the evaluation period you will only be able to use the software for test purposes and not for commercial paid work, and for the duration we will support you to get the most out of your test. System requirements can be found in the FAQs.

All we ask from you are some details so we can contact you to issue you with the installation file.

Once you submit your details, a customer service agent will contact you and provide the free trial installer.

Existing customers who are fully maintained can download the latest versions of their software on demand from their personalised customer licensing portal.

Your login ID and Password for the portal is not the same as your website account. You can find your login details in your purchase confirmation email. Alternatively you can request for your login details to be sent to you by emailing [email protected].

We offer a limited-duration trial license for you to assess the suitability of our products for your projects.

During the evaluation period you will only be able to use the software for test purposes and not for commercial paid work, and for the duration we will support you to get the most out of your trial.

All we ask from you is some details so we can decide whether you are eligible for a trial.

Compatible with most modern day Windows operating systems.

The full conditions of purchase and maintenance are set out in the Oasys Software Licence and Support Agreement. All prices are subject to TAX at the current rate.

Prices and specifications are subject to change without notice – please ask for a written quotation.

Although every care has been taken to ensure the accuracy of all information contained herein, the contents do not form or constitute a representation, warranty, or part of any contract.

By completing and submitting this form you consent to Oasys Limited storing and processing the personal data you have provided. We will use this information to keep you updated about the products requested for customer service and sales analysis. We do not pass your details to third parties to use. For more information visit our privacy policy. You may opt-out at any time by emailing [email protected].

Please select what type of licence you would like to purchase

PDisp

USD $1,325.75USD $150,921,307,671.98

Oasys PDisp is a tool that provides an easy-to-use, yet powerful and robust methods to analyse ground movements due to pressure and heave loading. PDisp is a core component of our Ground Movement Bundle and Geotechnical Suite, both in Pro and Basic versions.

Clear
Quantity:
Total: USD $0.00

Description

Embedded retaining walls

Additional information

Select your version

PDisp, Ground Movement Bundle, Ground Movement Bundle Pro, Geotechnical Suite, Geotechnical Suite Pro

Select your licence

Standalone, Network Floating, Network Floating International

I would like to

12 months Subscription (Pay annually), 36 months Subscription (Pay annually)

Oasys Frew is also available as part of the Oasys geotechnical and suites that bring together complimentary tools in discounted packages

What should I choose?

Standalone licenses are locked to an individual machine, but transferable by the user to another machine manually. Ideal for single users. Restricted to use within the country stated in the End User address submitted by Licensee to Oasys at the time of purchase.

Network Floating licenses can be activated on any number of machines, however you can only concurrently use the number of licences that you have purchased. Ideal for users requiring more flexibility or when working as part of a team. Restricted to use within the country stated in the End User address submitted by Licensee to Oasys at the time of purchase.

Network Floating International licenses can be activated on any number of machines, however you can only concurrently use the number of licences that you have purchased. Ideal for users requiring more flexibility or when working as part of a global team. Eligible for deployment world-wide at the Licensees leisure.

*Prices shown are per year cost

Both Subscription options will allow you the right to use the software for the defined term, with the full maintenance and support service included for the duration. The price will be fixed for the duration of the agreed term after which it will automatically renew for the same duration at the then current price.

12 month pay annually – Single payment for the full term at the commencement of the Subscription period

36 month pay annually – Three annual payments split the cost over the Subscription period. All payments are fixed at the time of purchase and are not subject to variance over time. Lower annual cost in comparison to 12 month option.

Keeping your software licences maintained gives you full access to technical support (telephone, email and web based) and ensures that your software is kept up-to-date with free downloadable updates. Maintenance is only available to existing licences and lasts 12 months. It is highly recommended that you keep your software licences maintained. Maintenance duration will be calculated from the date of expiry of the previous maintenance/initial warranty. If you are purchasing maintenance for licences that have been unmaintained for longer than 12 months please contact us in order to renew.
